Description

Solid woven conveyor belt

Usage

Used in underground coalmine.

Characteristics

1, Is divided into two type : PVC and PVG, for the PVC type, the top and bottom cover is PVC rubber cover, the coating thickness is >0.8mm, with a slope angle <16,for the PVG type, the top and bottom cover is rubber blend PVC, the coating rubber thickness is of 1.5-4.5mm with a slope angle <20°.

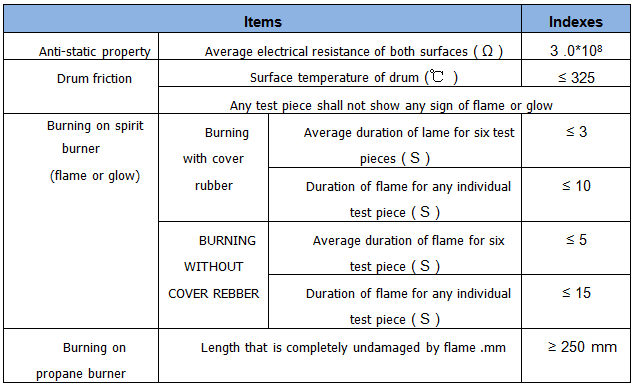

2,The belt, with great flame resistant and anti-static properties, can fully satisfy the requirements of MT914-2008. The belt uses high strength, low elongation, high quality polyester filament in warp, and high strength, moderate modulus nylon filament in weft. So that the fabric has advantages like high strength, low elongation, light carcass, free of separation of plies, shock resistant, anti-tear, good troughability and so on.

PVG type is covered with covers mainly composed of rubber, which further improves the troughability, resistance to wetness and slip, resistance to low temperature, elongation and wear resistance of the belt. Thus it can not only enhance the slope angle of conveying but also elongate life of belt.

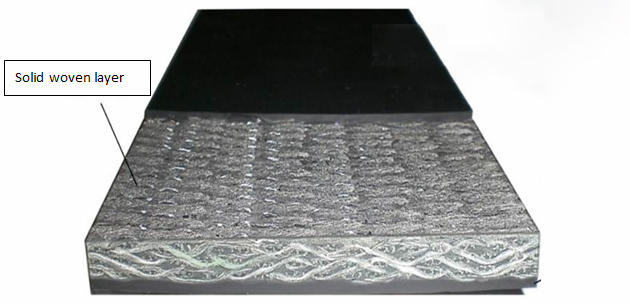

Structure

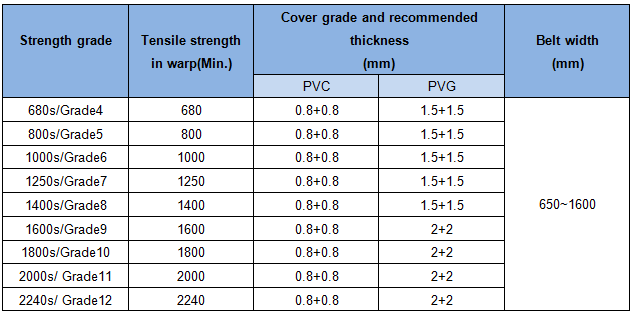

Standard Specifications

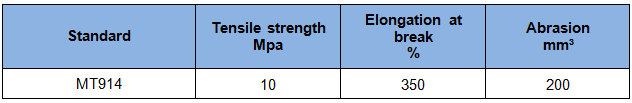

Rubber Covers

Standard Specifications

Introduce

The company is a modern machinery manufacturing enterprise integrating production, research and development, and sales, dedicated to providing customers with high-quality conveyor belt products and solutions.

Customized Process

Order Notes

To meet diverse industry needs, our products are categorized into multiple specifications based on material handling requirements and operational environments:Standard, Heat-Resistant, Acid/Alkali-Resistant, Oil-Resistant, Cold-Resistant, and Flame-Retardant types.

Goods will be strictly tested before delivery, please check carefully after receiving the goods, if there is any problem, please contact us in time.

Online communication

Provide custom drawings

Merchant quotation

Sign a contract

Processing and production

Packaging and distribution

Confirm receipt of goods

Successful transaction

FAQ

Can you accept small quantities?

Yes, accept small quantity, fast delivery

Do you have pre-shipment inspection procedures?

Yes, we always test the products before delivery.

Can I take samples for testing?

Yes, samples can be sent for testing before bulk ordering.

When is the delivery time?

Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.

What are the terms of payment?

Wire transfer or letter of credit, Western Union, Alipay, etc.

What is the minimum order quantity?

It depends on the product.

None

Solid woven conveyor belt

Is divided into two type : PVC and PVG, for the PVC type, the top and bottom cover is PVC rubber cover, the coating thickness is >0.8mm, with a slope angle <16,for the PVG type, the top and bottom cover is rubber blend PVC, the coating rubber thickness is of 1.5-4.5mm with a slope angle <20.
